ADTech 8-Nov-2015 5:59 PM

Radio Shack, before their bankruptcy, carried one. You might contact any remaining local stores and see if they still stock it. Catalog # 15-0024. Other than that, there are no retailers that carry one.

The FM filter almost always goes before the first amplifier.

rabbit73 8-Nov-2015 8:00 PM

3 Attachment(s)

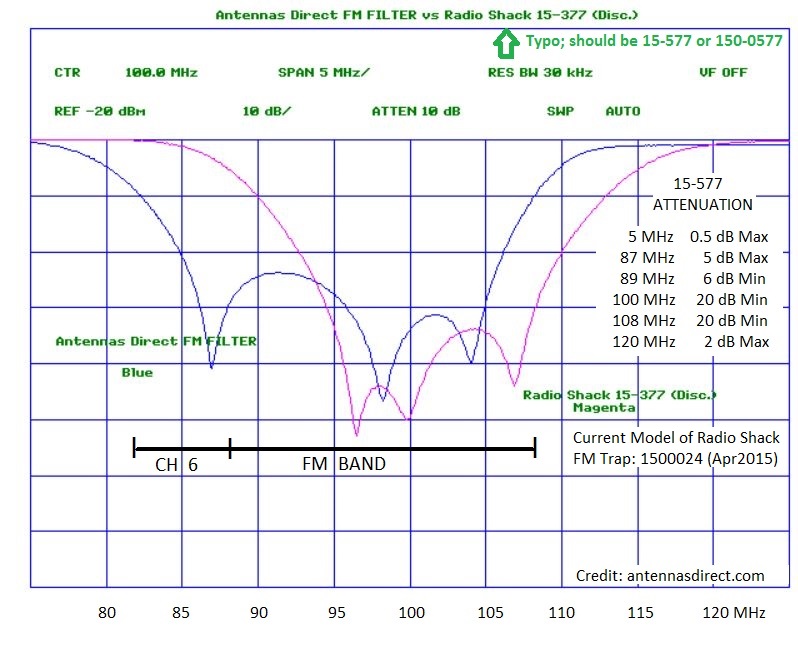

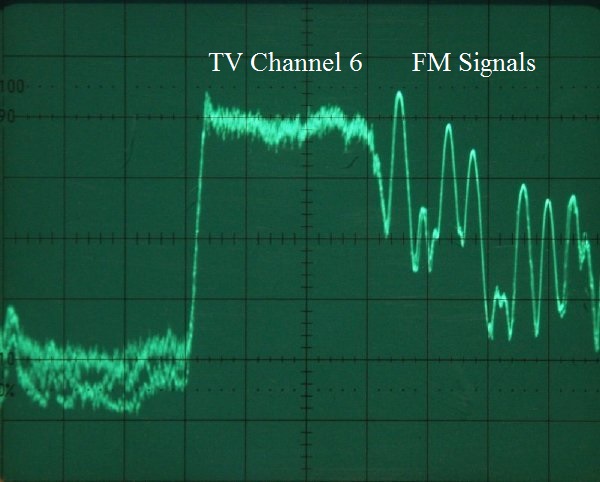

The Radio Shack FM filter is not suitable for your location. It will not attenuate WFDD on 88.5 MHz because it is designed to allow reception of CH 6 TV. It does well at the high end.

http://www.fmfool.com/modeling/tmp/c...9/Radar-FM.png

The Antennas Direct FM filter is just the opposite. It does well at the low 88 MHz end but not as well at the 108 MHz end.

http://forum.tvfool.com/attachment.p...0&d=1441159109

The MCM does well at both ends.

http://forum.tvfool.com/attachment.p...1&d=1441159163

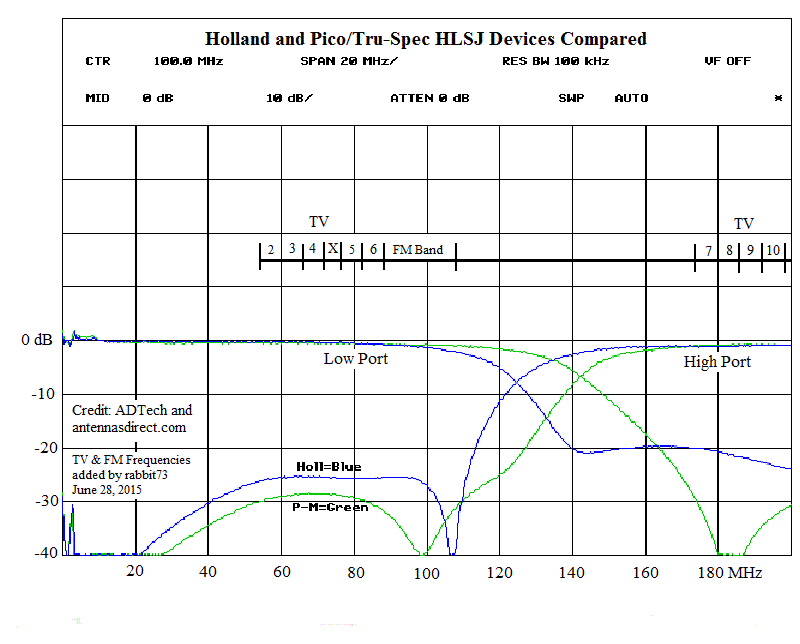

You can use a HLSJ as an FM filter. It has low loss and attenuates everything below TV CH7 including the FM band.

http://forum.tvfool.com/attachment.p...0&d=1447018218

http://forum.tvfool.com/attachment.p...1&d=1447018564

http://forum.tvfool.com/attachment.p...2&d=1447019361

WIRELESS ENGINEER 13-Nov-2015 9:28 PM

The Xtreme Signal HBD8X can replace BOTH and do it with ONE coax feed and it's only $49.95 at Solid Signal

It can pick up from two different directions
