CAUTION, there is a new version being sold, and they are using the photo of the original ANT751; very misleading.

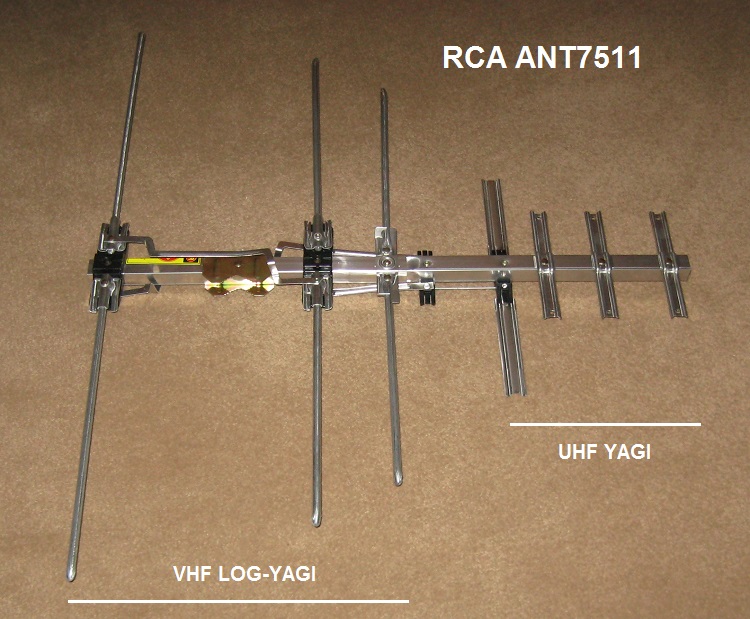

RCA Suburban Mini Yagi Digital Outdoor Antenna with Mast, now model ANT7511


1. The mast clamp is now ahead of the rear element
2. There is only one VHF director

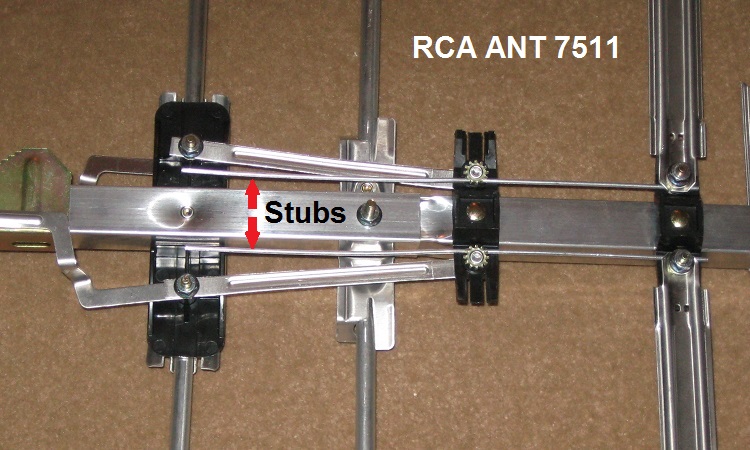

3. The 4 shorting stubs have been replaced with 2 small-diameter wires, each 5-1/2" long
4. The Tetrapole has been replaced with a long dipole driven element; 6-1/2" long on each side
5. The UHF director pair in front of the Tetrapole has been replaced with a conventional director, for a total of 3 directors, each 7" long

Attached Images
File Type: jpg RCA ANT7511.jpg (190.2 KB, 12196 views)
File Type: jpg RCA ANT7511cu.jpg (160.0 KB, 12179 views)
